SPD Kütusevahepaak (paagiväliste pumpade jaoks)

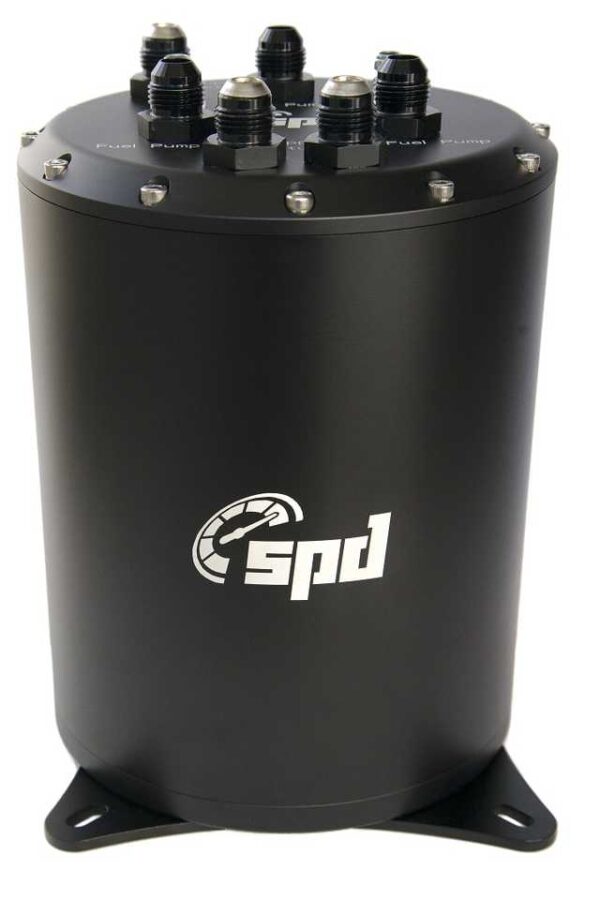

SPD billet high-end catch tank. The entire construction is bolted with viton o-rings giving maximum reliability for both gasoline and ethanol fuel. The tank has no welds that can crack and begin to leak.

It is the same catchtank for internal and external fuel pumps. This model is adapted for external fuel pumps.

This catchtank supports up to 3 fuel pumps! A catch tank / fuel surge tank  suitable for both low power output to high power output applications.

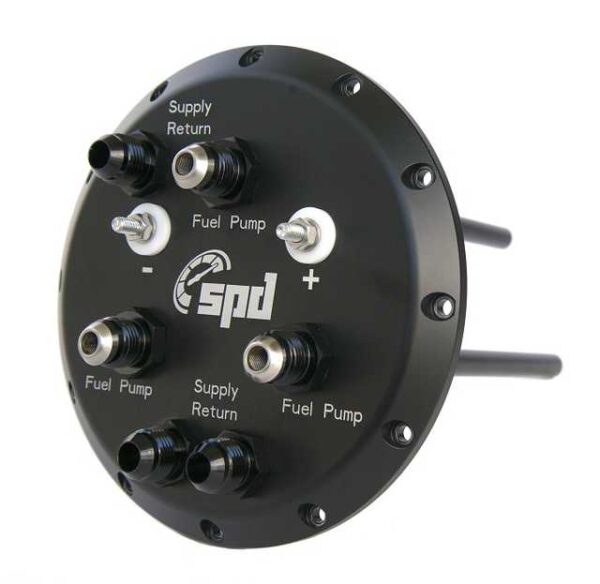

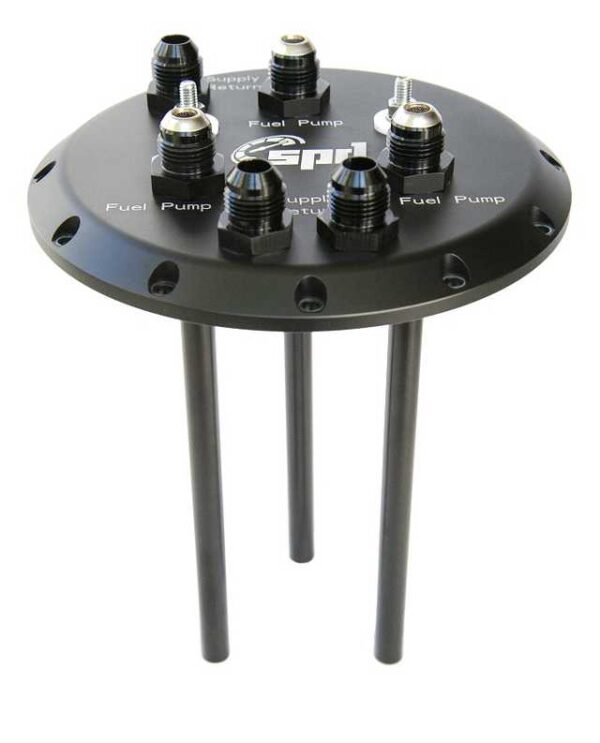

The fuel pump hanger module has AN8 fittings in and out.

Supplied with AN8 fittings and 3x AN8 tube adapters. If you use fewer fuel pumps than 3, you can add female or male AN8 plugs.

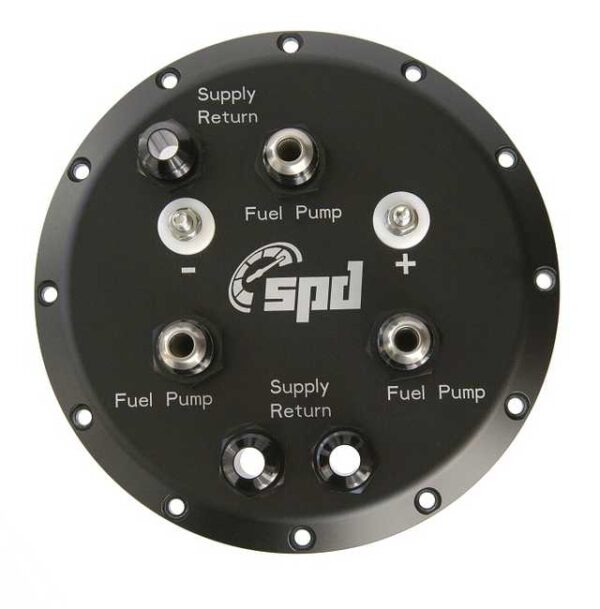

– 6x AN8 female connections in the top.
– Supports 1-3 pumps up to 60mm.
– Rebuildable from external to in tank pumps.
– Rigid billet construction.
– Volume of approximately 3.7 liters.
– Size 190x235mm (diameter x height without nipples) 190x260mm (diameter x height with nipples)
