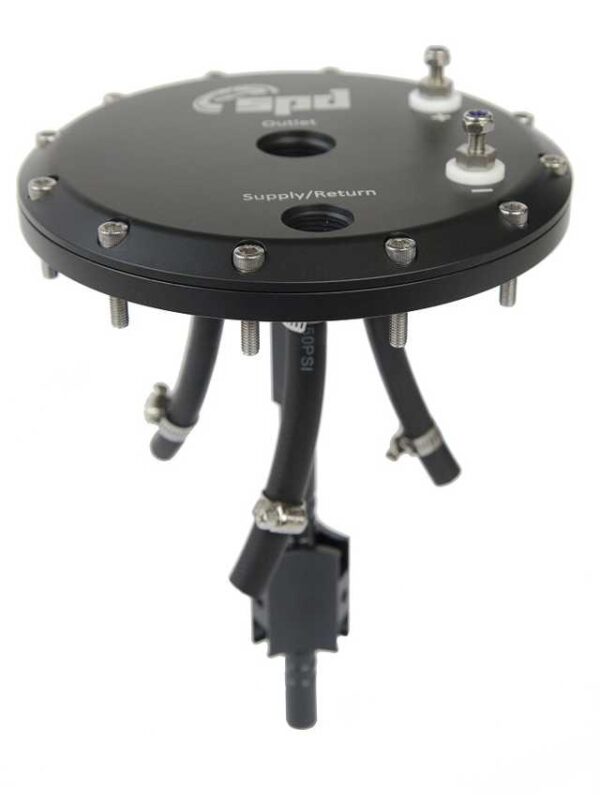

Fuel pump hanger for those who want to build their own fuel tank / fuel cell or catchtank with internal pumps. Also suitable to fit in original fuel tank.
Supports all round fuel pumps on the market. Up to 3 pumps can be used. Adjustable height when installing the pumps to adjust to specific contidions and height of tank.
The fuel pump hanger is made to collect fuel from pumps installed into a chamber to obtain only one output. This saves a lot of space and money when you don’t have to use extra Y-cross, Tees, hose and AN fittings to merge several outputs into one.
You only use one hose to the engine and one hose back from the engine, regardless of whether you use 1, 2 or 3 fuel pumps. If you use dual fuel rails (V motors) you just add one Y-cross in the engine bay instead of several which had been the case wthout this fuel pump hanger.
Fuel pumps, hose clamps and hose are not included.
Output female: 1xAN12 (Adapters available to reduce output)
Return / Input female: 1xAN10 (Adapters are available to reduce output)
Input / Output female connections support both O-ring and washer seal
CC between bolt holes: 185mm
CC between input / output holes: 70mm
CC between +/- terminals: 75mm
Length of pump mount: 230mm
Adjustment limit on pump mount: 90mm
Diameter of pump mount (tube): 15mm

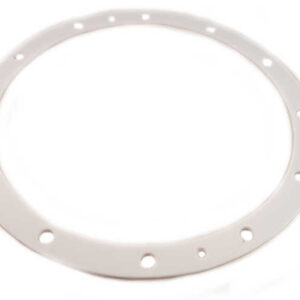

NOTE! We strongly recommend that you buy with the associated mounting flange. It is placed on the inside of the tank to be able to easily pull attached fittings so it creates a tight mounting between the clamping ring flange, tank and the fuel pump hanger. Available for purchase as a linked accessory.
