Garrett G30 660 A/R 1,01 (Reverse Rotation)


Saadaval järeltellimisel

Garrett G30-660 turbo for 2.0 – 3.5L engine displacement up to 660 horsepower. Read our guide and get more power and durability by choosing the right G30 turbo.

Horsepower: 350 – 660HP
Displacement: 2.0 – 3.5L



Exducer: 67mm
Inducer: 54mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.70

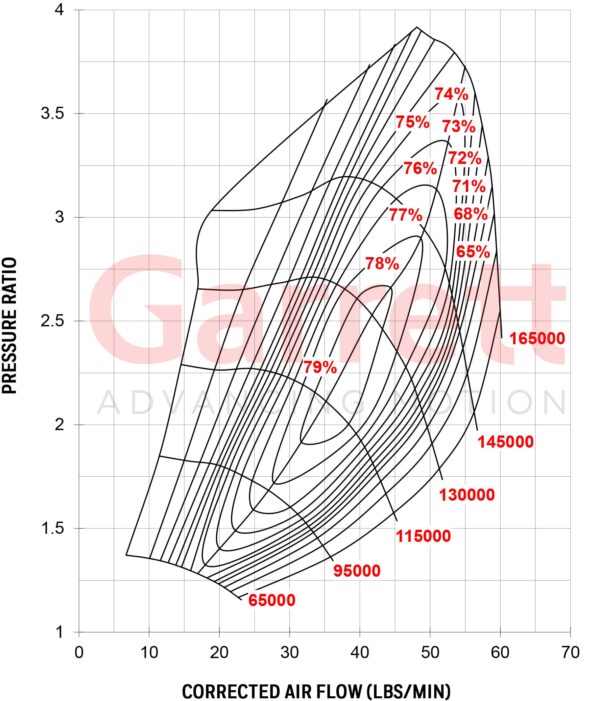

Max Flow: 61 lb/min
Max Recommended Speed: 165000 RPM

Compressor Housing Connections

Inlet: 3.0″ Hose Coupler
Outlet: 2.0″ Hose Coupler


Exducer: 55mm
Inducer: 60mm
Trim: 84
Material: Mar-M

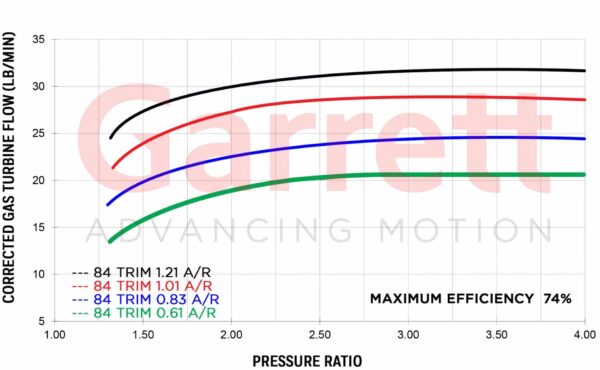

A/R: 1.01
Max Temp: 1050C / 1922F
Wastegate: No
Divided: No

Turbine Housing Connections

Inlet: T3
Outlet: 3.5″ V-band
